So I got started on this boat building sickness from this very site, building an UJ Piroge. I enjoyed building that boat so much, I knew I had caught the bug. I've always wanted a canoe so i could take a girlfriend out, or take a river camping trip with buddies and the likes. I looked and looked, and read and read about building strippers, and I finally made the plunge about a month ago. Got the plans, started wood shopping, and well..............i'm knee deep in it now. Here goes...

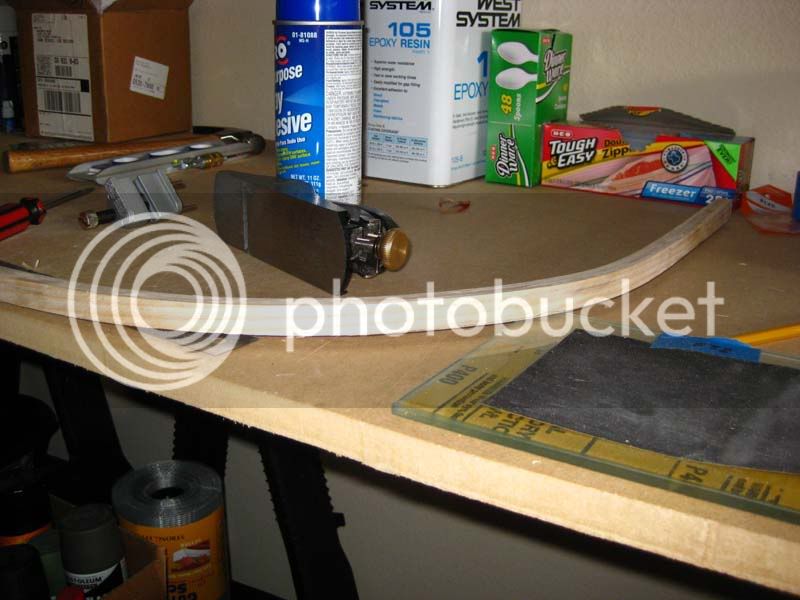

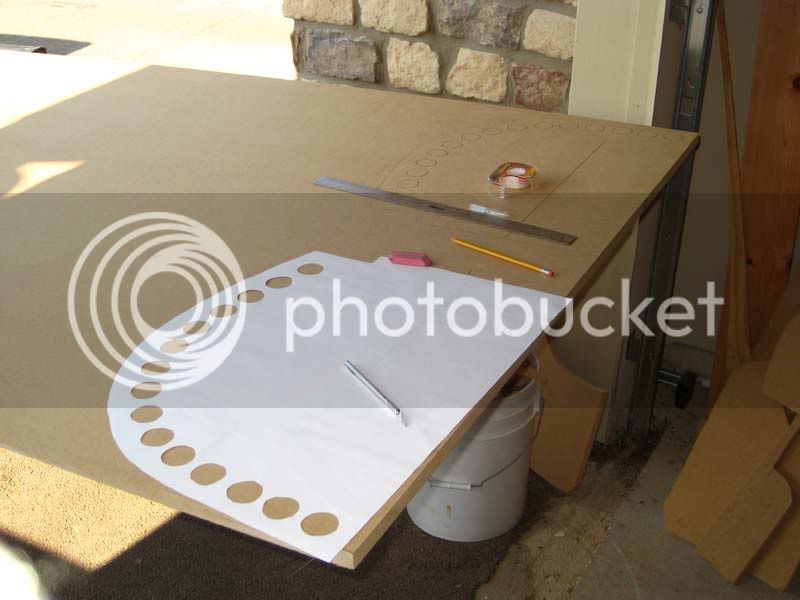

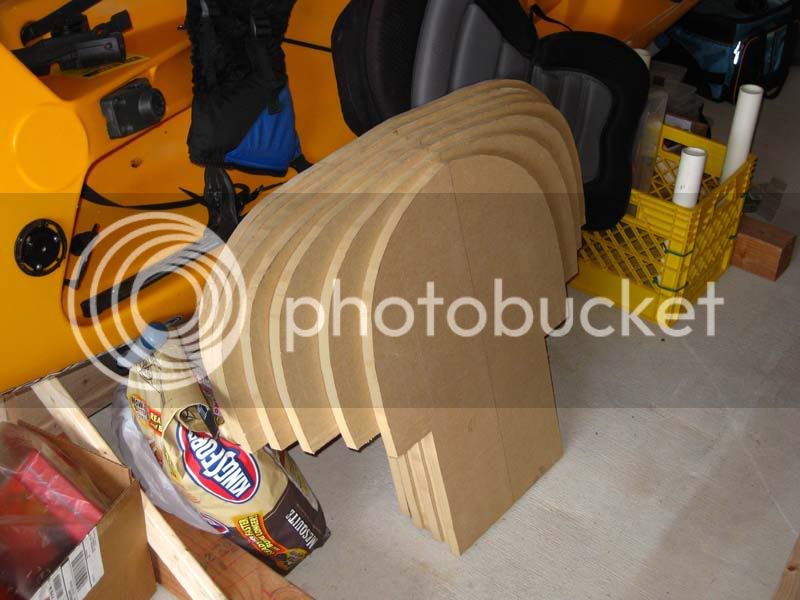

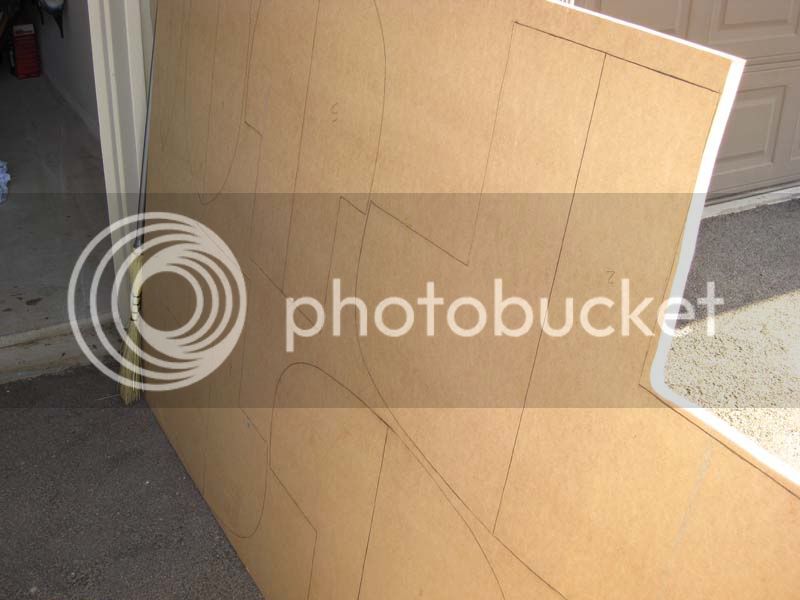

My plans came in, and I needed something to make the forms from. I went with (i think) 3/4" MDF, and let me tell you, that stuff is HEAVY. I read about other folks getting copies of the plans made and then cutting out each form, but every said how surprisingly expensive that was. I ventured for a more cost effective method, so i tracked down one of those large white paper flip charts, the kind that you'd put on a stand and use for a presentation or something of the sort. I found one where the paper was pretty transparent, and I went to town tracing each half form. Now that I had my paper versions of each full size half form, I cut them out. I was going to put these straight onto the MDF, but I caught wind of another idea along the way to make templates for all the forms. I found this thin fiber board stuff at Lowes that served my purpose nicely, so all my paper forms were attached to this thin board and then cut from there. I'll have to go back and get a picture of my "templates", as i realize now that I dont have one. Anyway, took these half form templates and traced them onto the MDF




Since all I had was a jig saw, I cut as carefully as I could. Looking back, I wish i had cut a little further outside the lines and then gone back with my palm sander to get nice round forms. We'll see how "bad" my forms actually are once i start stripping. I'm planning to use staples, as I dont mind the look of all the little pin holes and theres the chance of those closing up when i wet out the boat prior to putting down the epoxy anyway. Hopefully, my strips will fit the forms and get stapled down and I wont have too many strips that stand proud of the form.

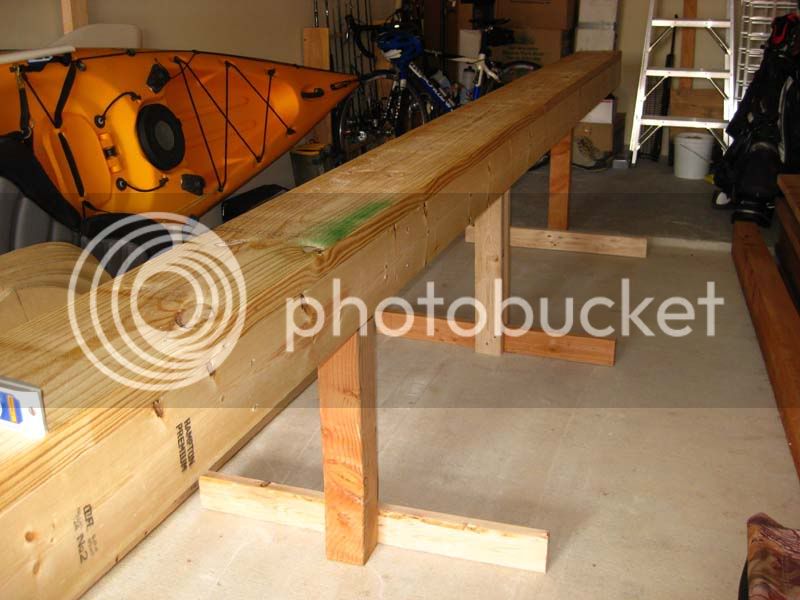

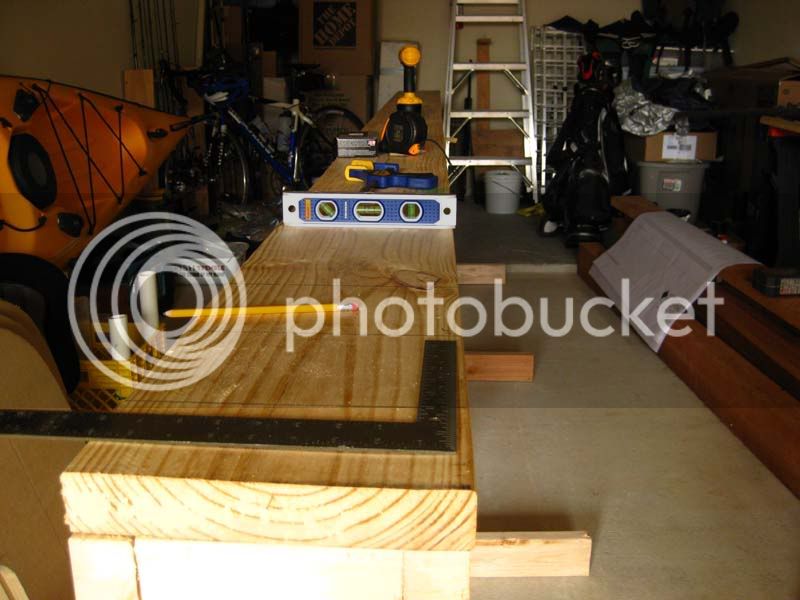

Next step was to get the strongback built. I was going to go with a 2x6 for the top, but when i started fitting it together I didnt like my original idea so i went back to the drawing board. I shifted gears to having a 2x10 on top, with the 2x6 boards hanging from the sides. On the underside I've got some 2x4 boards cut to fit as cross braces.

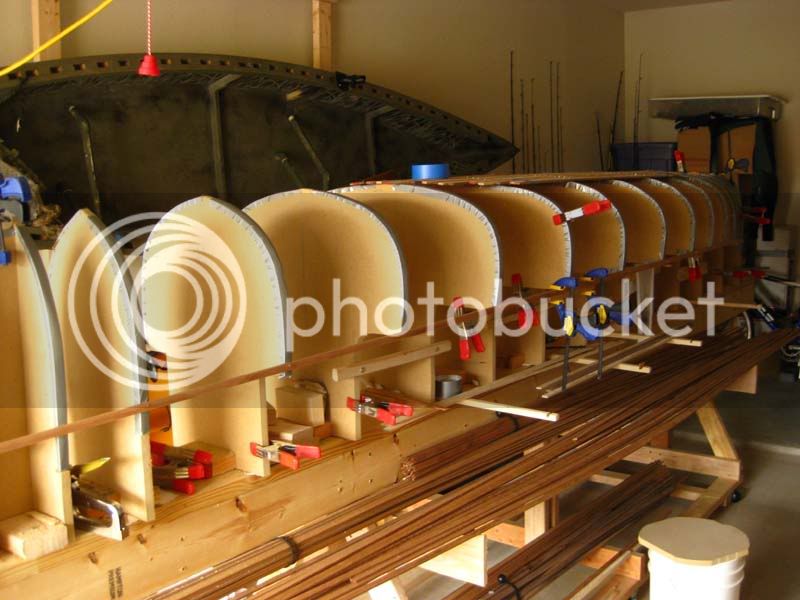

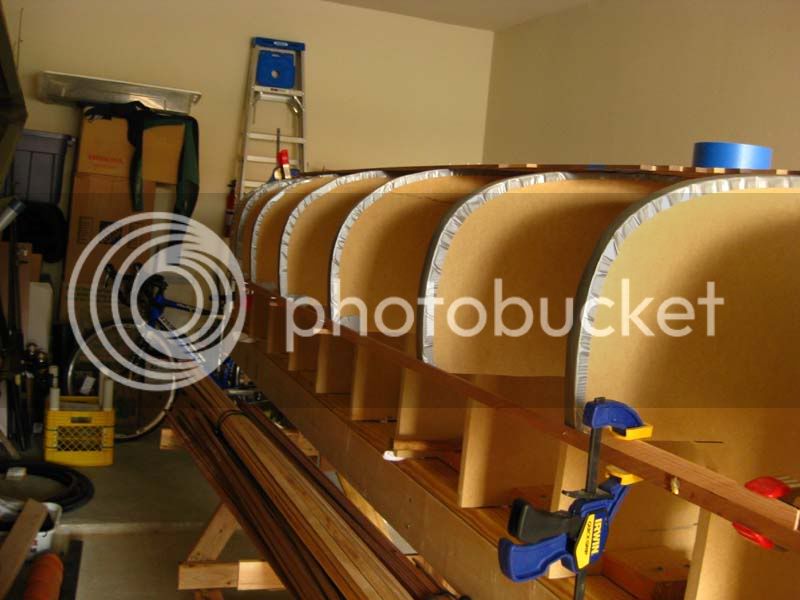

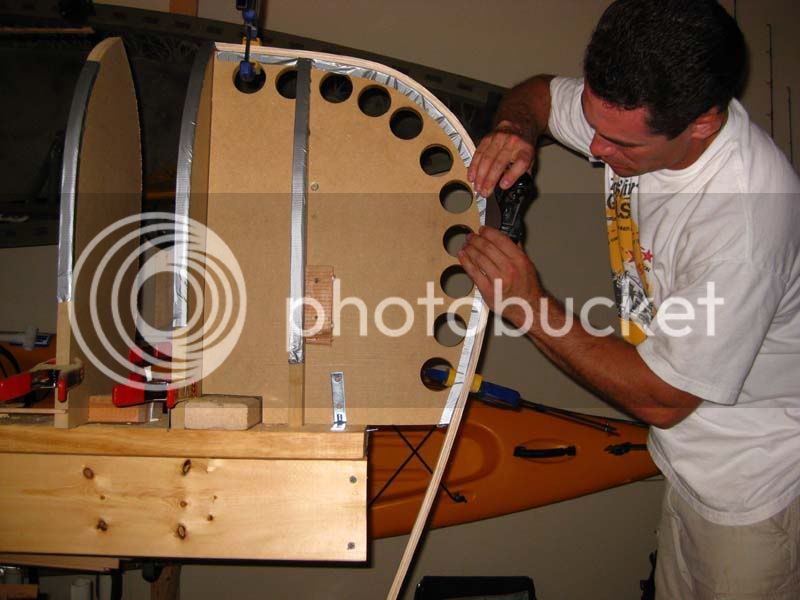

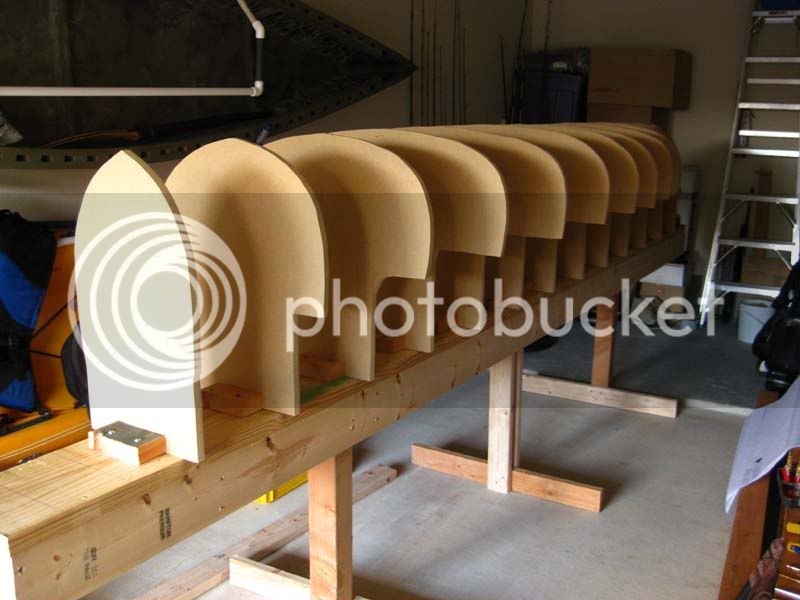

From there, it was time to mount the forms. Going with the standard single block attached to the form, then attaching that to the strongback, I have to say isnt the most sturdy method. Since this picture I've taken some boards and tried to shore up each form to make them more "move resistant". This was suggested to me from another builder, stating that when you start to sand everything down, you dont want things moving around on ya. Made sense to me! I also went back and made sure all the forms were square and level, which was quite the pain! Detail now though saves the boat later on down the road, so its worth the time to do it right first.




TX_yakker

Active Member
Sep 23, 2008
26
0
#2
I've since gone back and modified my strongback a little, making it more sturdy and adding "accessories". I'll have to snap some pictures here soon.

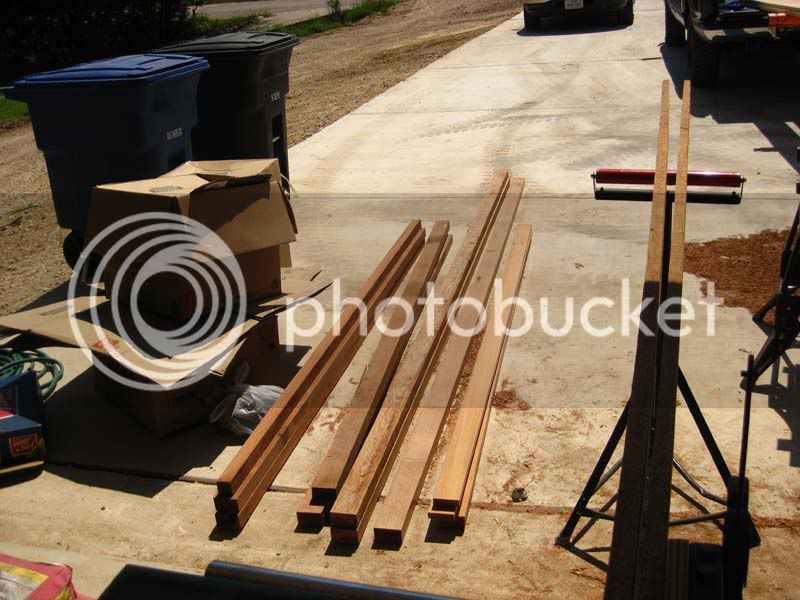

Got held up a little once that was complete because i had my cedar but nowhere to cut it. Then i found out a co-worker had a table saw, planer and a joiner!! I was in business again! I loaded up and headed over to his place on a saturday...

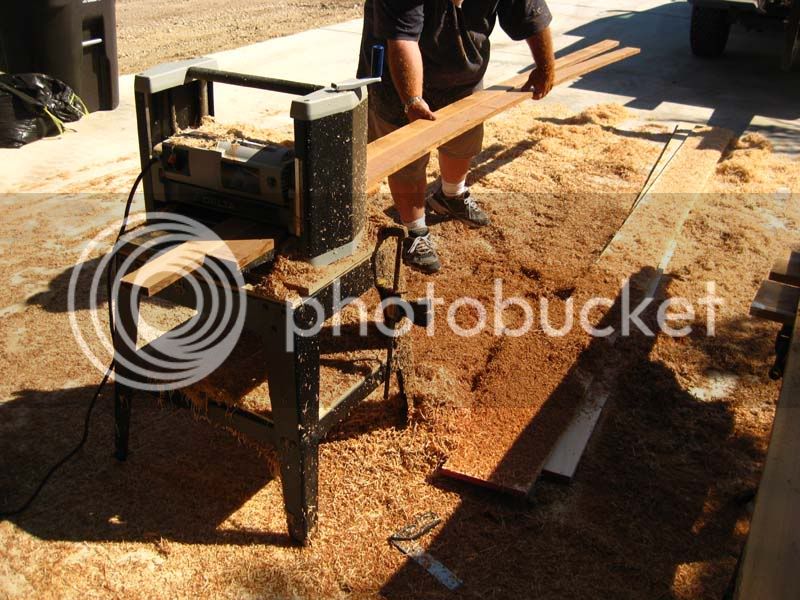

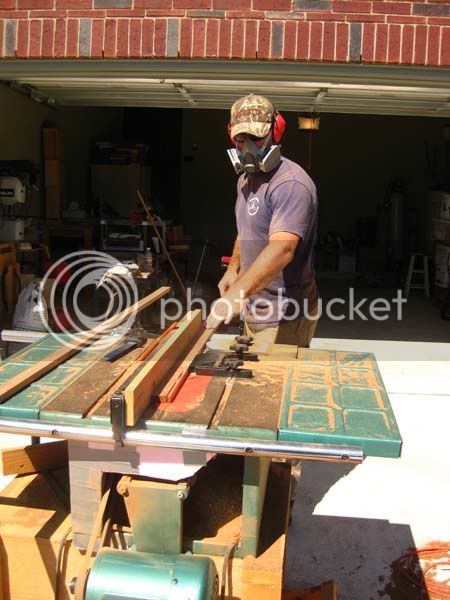

Then we started doing this!

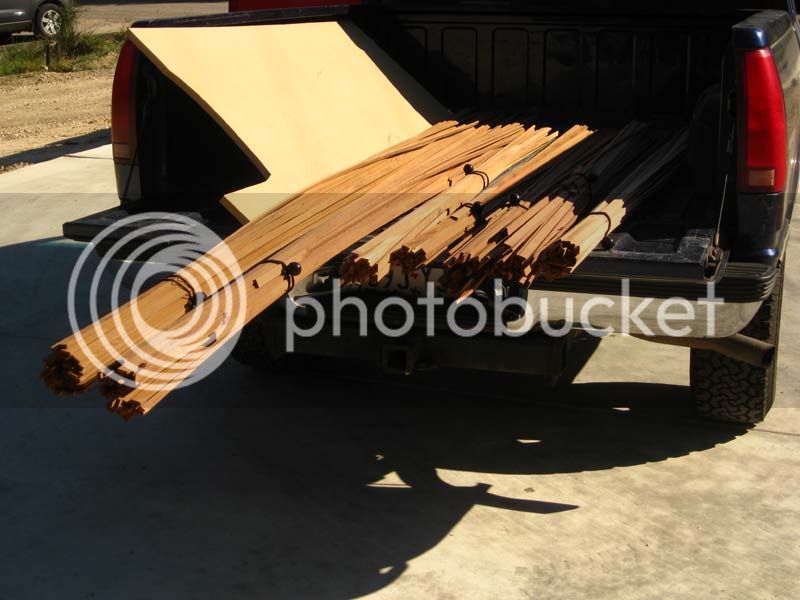

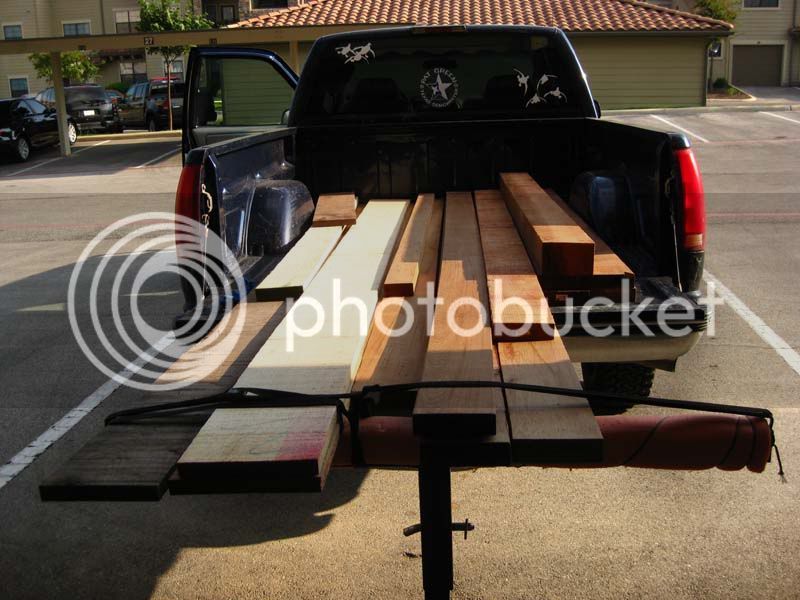

And that pile of boards in the back of my truck started turning into smaller boards just like magic


I know a lot of stripper builders use 1/4 x 3/4 strips. In my reading and research around the web and in a book i bought, Strip Built Canoe, I read about using slightly smaller strips and how they bend and shape easier. Being a completely green and rookie stripper, I had no good/evil building goblins sitting on my shoulders telling me that i should or shouldnt go with smaller strips, so I drank the kool-aid and decided on strips that are 5/8 by 7/32. I havent actually finished cutting them yet, but all my boards are sitting on the ground at 5/8 thickness, waiting to be cut into strips. Hopefully that step will be taking place in the next few days here.

In getting started on this build, I got the chance to get my hands on some new tools that I previously knew nothing about. The main one so far has been the block plane. I picked up a Stanley at Lowes and thought cool, now i have a block plane. Well, little did i realize it needed some TLC even though it was fresh from the package. "You mean, I still have to sharpen it even though its fresh from the store..........but, but, i thought the STORE sharpens it?" Nope. More learning needed to take place, so i researched about sharpening these things since I had never handled one before. I read up on this whole "scary sharp" thing, and I went at it. Got me an angle guide, sandpaper sheets from 80 grit up to 1500, and a piece of glass and got to work polishing the back side of the blade, then putting an edge on it. I've tried sharpening pocket knives, and I can honestly say I've never made anything as sharp as I got this blade. It was able to cut the hairs from my hand with ease, and I've always wanted to be able to do that with a pocket knife.

Well, I'm at a standstill now until i can get back over to my co-workers and start ripping strips. I'll update once things get moving again.


Kayak Jack

Well-Known Member
Aug 26, 2003
12,762
43
80
Okemos / East Lansing Michigan
#3
Save all those wood shavings, to be used (after screening), as wood flour. And GET THAT SHOP MESSIER! That's an order, mister! :wink:
I hate guys with neat, organized shops sigh

You are on a grand adventure. You will have trials, tribulations, and triumphs. And - it's all YOURS. Good on ya!


TX_yakker

Active Member
Sep 23, 2008
26
0
#4

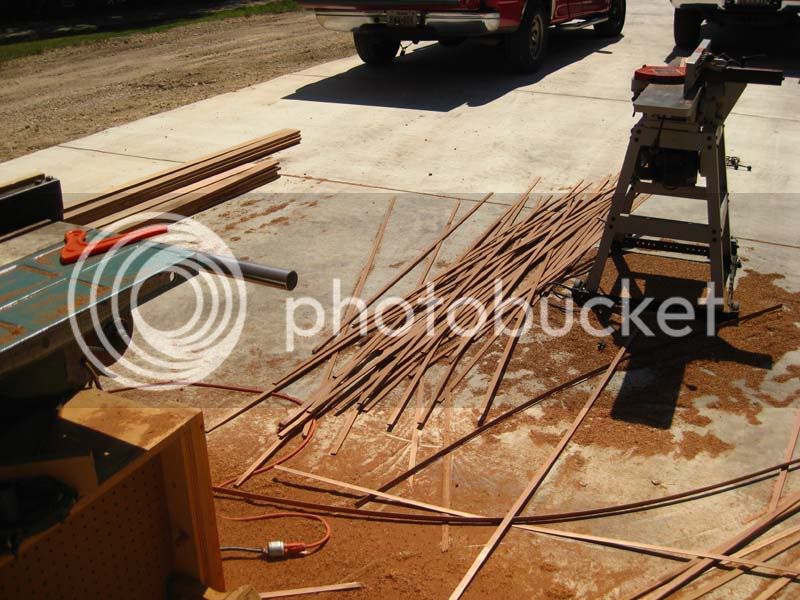

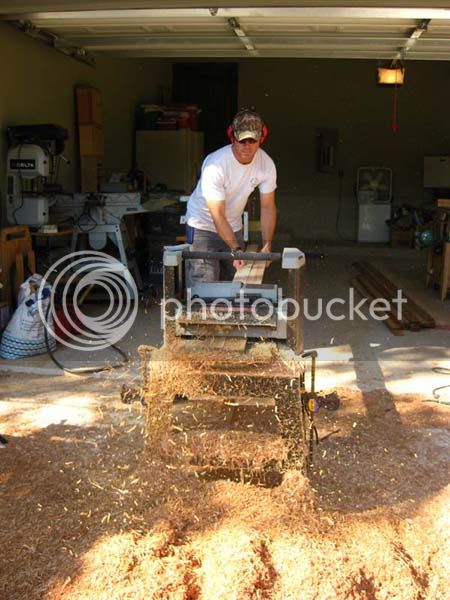

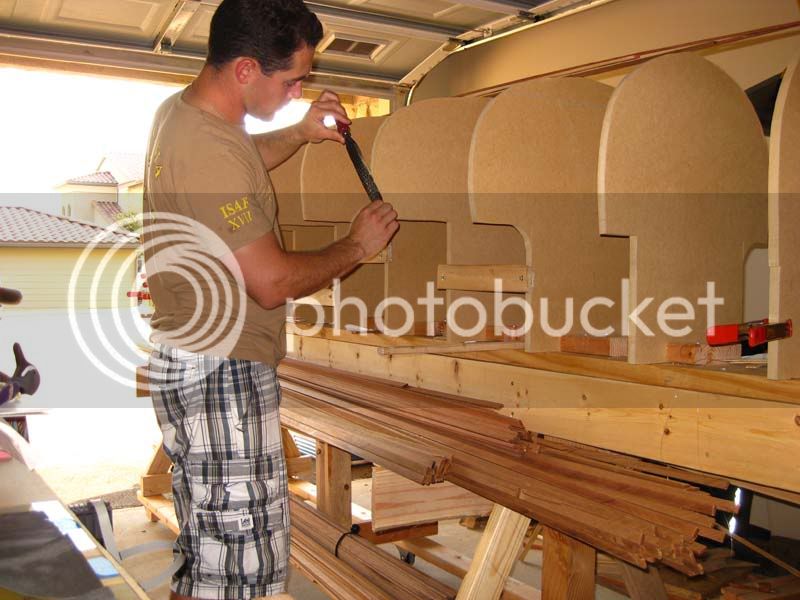

Saturday was a productive day, got all my strips cut! Went over to my buddy's house and got started around 1030 and worked till the sun went down. Finished up just as the sun was setting so finally, i had strips to start messing with. Loaded up and headed home





I know the shop in the background is waaaayyy too clean. Normally, I'd let it get saw dusty but it isnt my garage, so I dont know how this guy likes to keep his place so I decided to err on the side of clean. After all, he was being helpful letting me borrow these fine power tools!

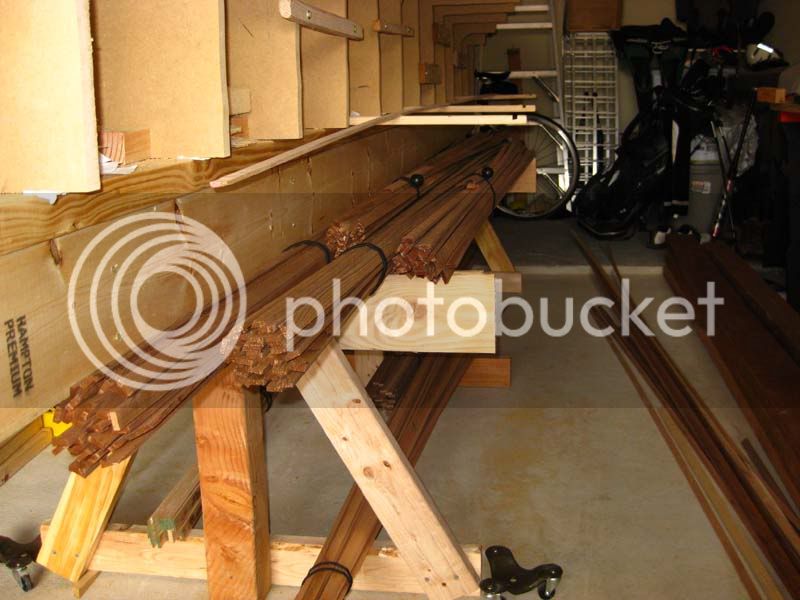

Got home and threw the strips on my shelves i added to the strongback. Keeps them nice and out of the way while not being used, and since my garage is a one car set up in an apt complex, i dont have all the space in the world.

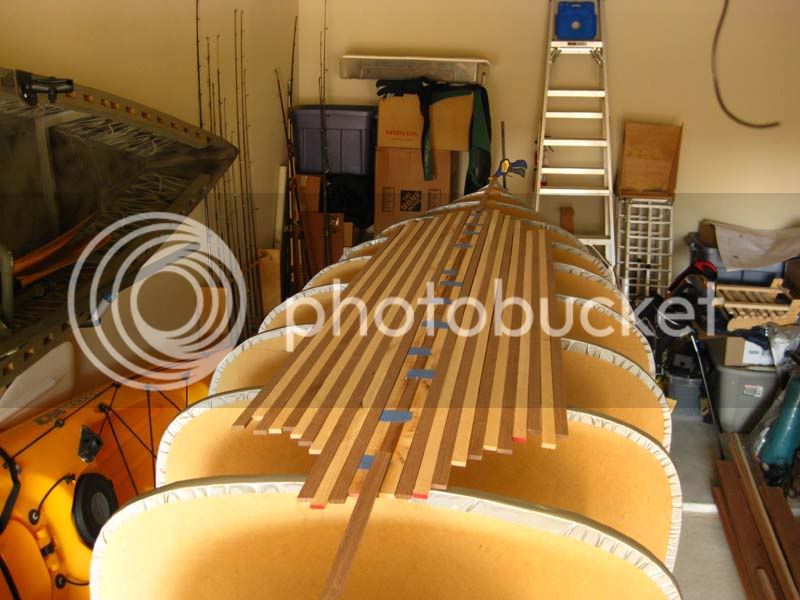

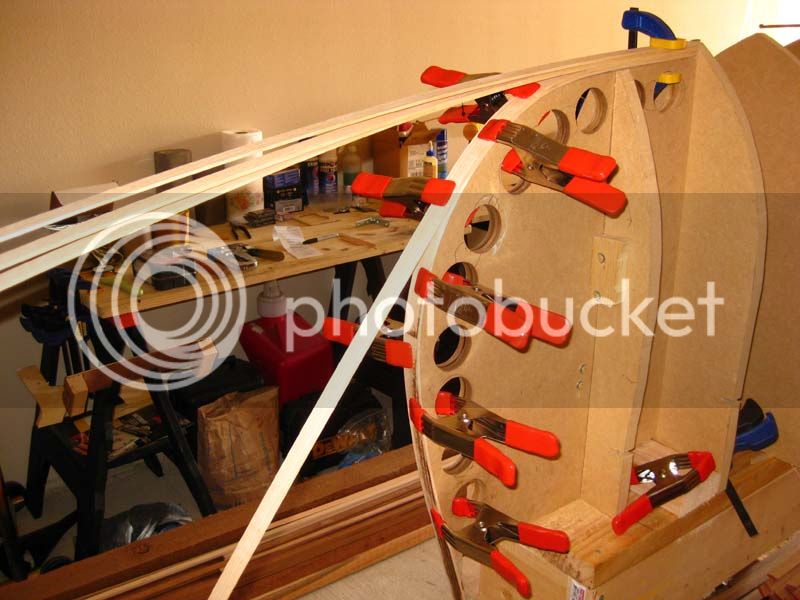

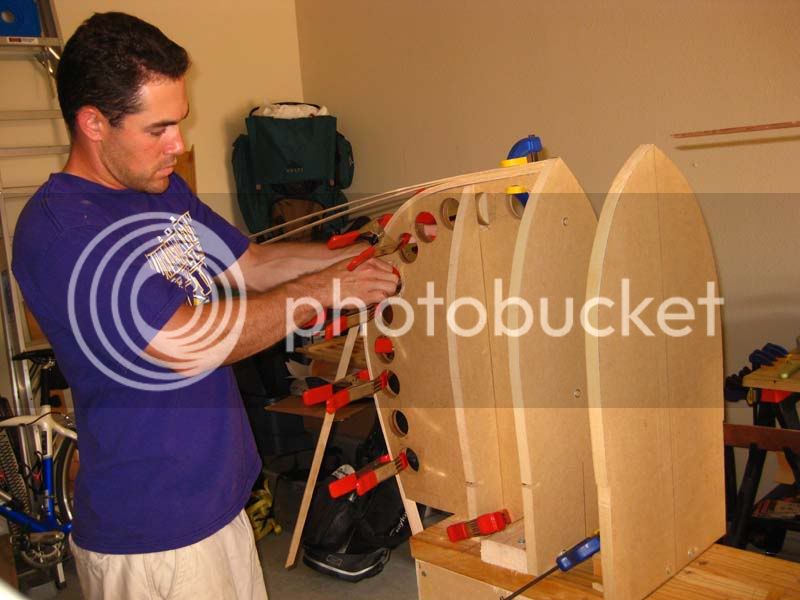

This morning I went out and started messing with the strips figuring out how they'll fit around the forms, how much I'll need to shave off each form, and how the stems are gonna go together. My Shinto gets here wednesday so I'm looking forward to that. Then i'll really be able to get down on those forms. Trying to plane MDF is just a pain, and really not worth the effort. I did a dry fit on the stem forms with the ash pieces




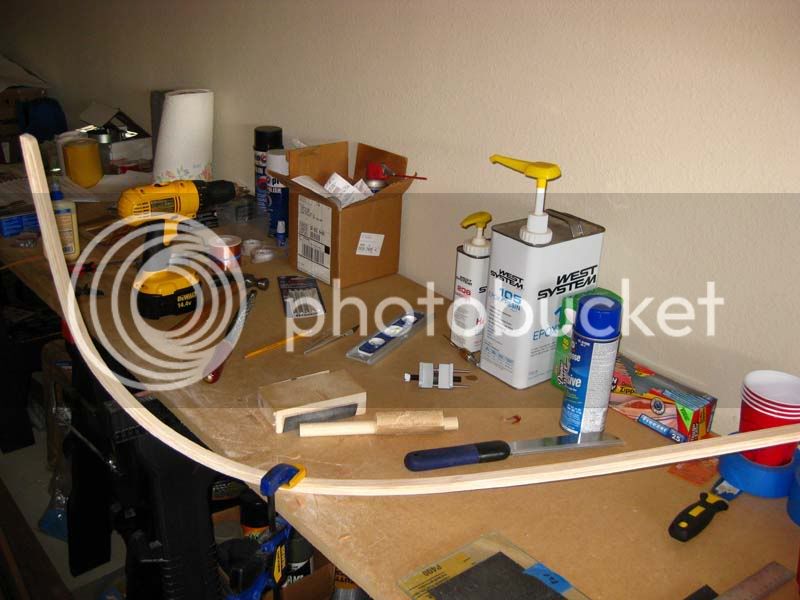

Then it was time to break out the epoxy and glue it all up!



With the stems on the form and drying, I'm back to waiting. I'm going to put this thing on some kind of frame with wheels so I can roll it out of the garage to give myself more working room, and perhaps attract new neighbors. That'll be my project for tomorrow...


TX_yakker

Active Member
Sep 23, 2008
26
0
#5
Been busy this past week or so making good progress. With the stems dry, it was time to start shaping them





My Shinto came in the mail which was pretty exciting, so i finally got to shape my forms and give them a nice taper. That thing will really take some wood off!!


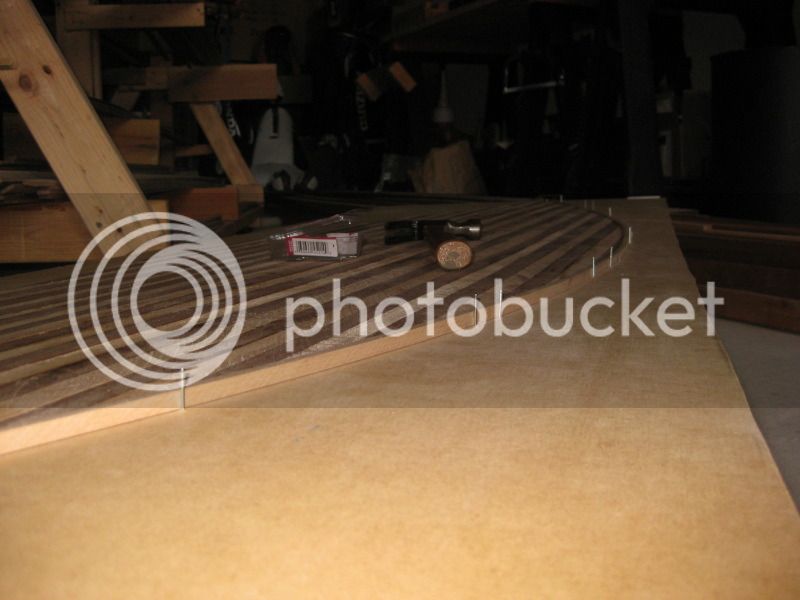

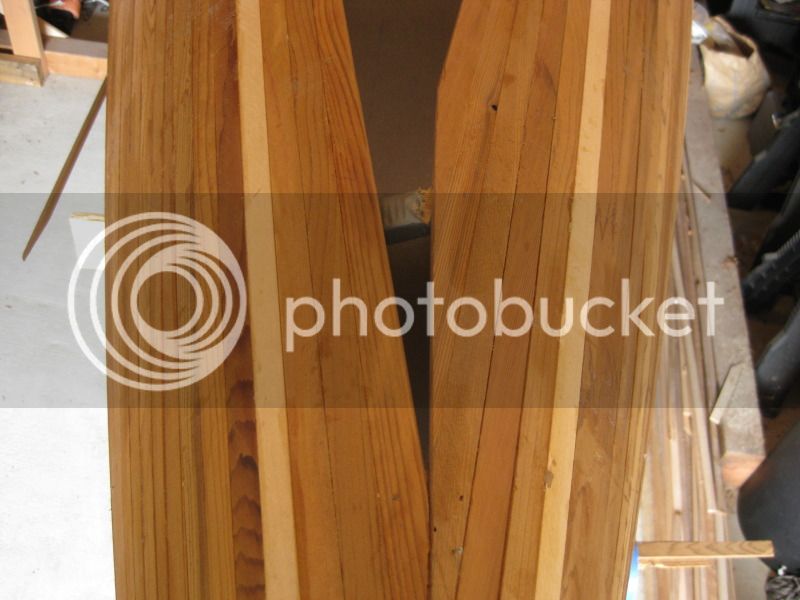

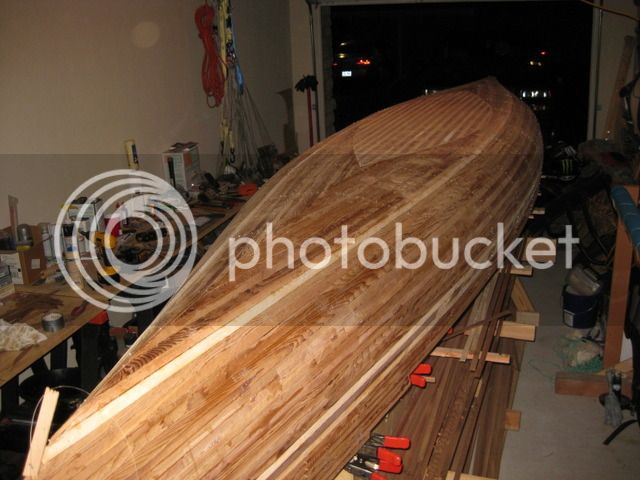

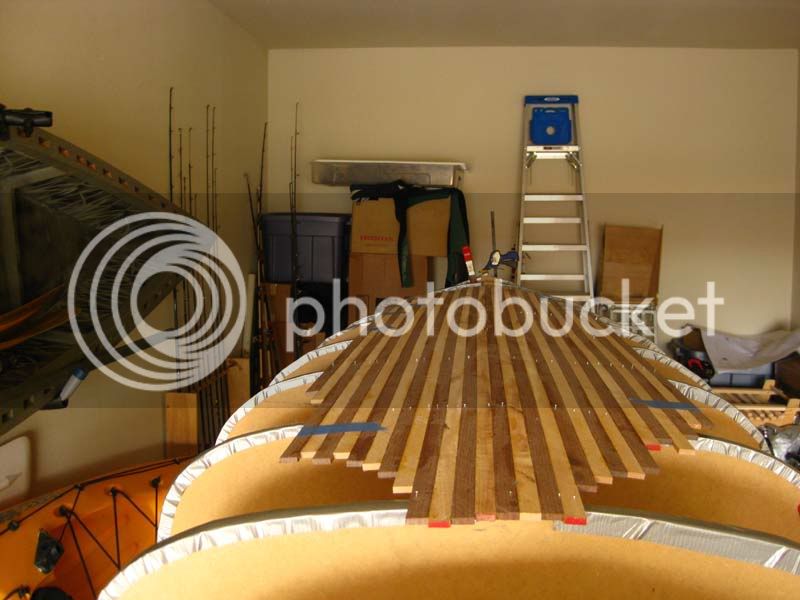

Now that the stems were nice and tapered to flow with the strips, it was time to start stripping!!! I started with the football because i figured it would be easier for me to start there. I'm doing an alternating stripe pattern that should look nice sitting in the middle of the cedar. Here's the dry test fit, and a follow up


Rather than post 4 or 5 pictures having a few strips added each time, here's the final product

Glue is still drying on the last strips so i'll let it sit until tomorrow before i pull the staples and take it off. While those strips were drying, I was struggling with getting my shear strips long enough and actually staying together in a nice straight line. I tried gluing them using about a 45 degree scarf joint. It seemed to hold, but then sighting down the strip when i tried setting it, there was an ugly kink in the strip where that joint was sitting. Not liking that, since this is going to be along the gunnel and I want it to be nice and smooth all the way along there. Made a cut on either side of the scarf joint, and then tried gluing the strips using a butt joint. That only half worked also, with the same result. I was out of ideas, so i took 2 scraps and clamped them on each side of the joint temporarily. I figure once i get another strip on top of the shear strip, I'll get the same result of holding these 2 together nice and smooth. Anywho, got my shear strips on there and ready to go!




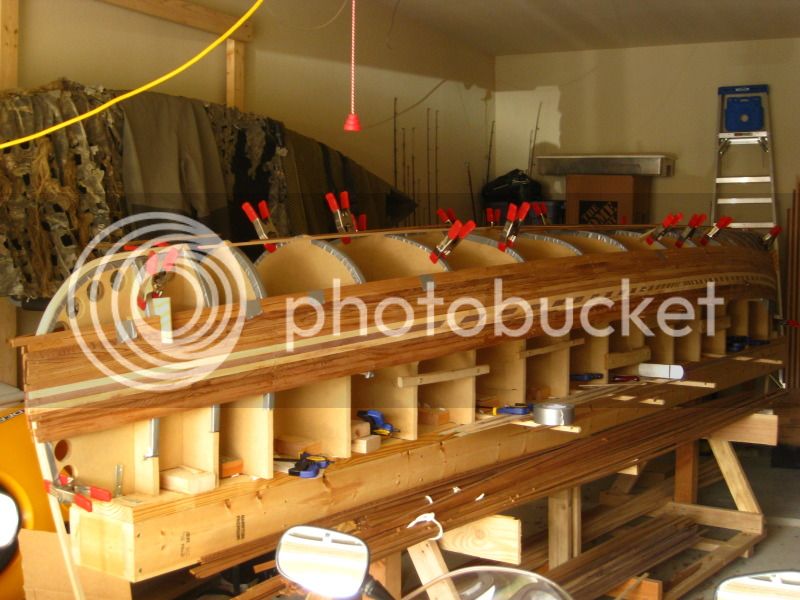

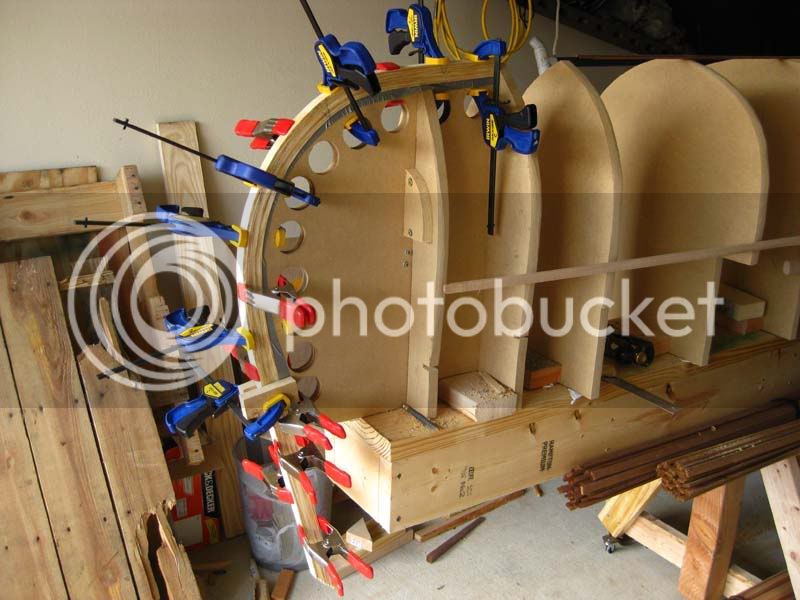

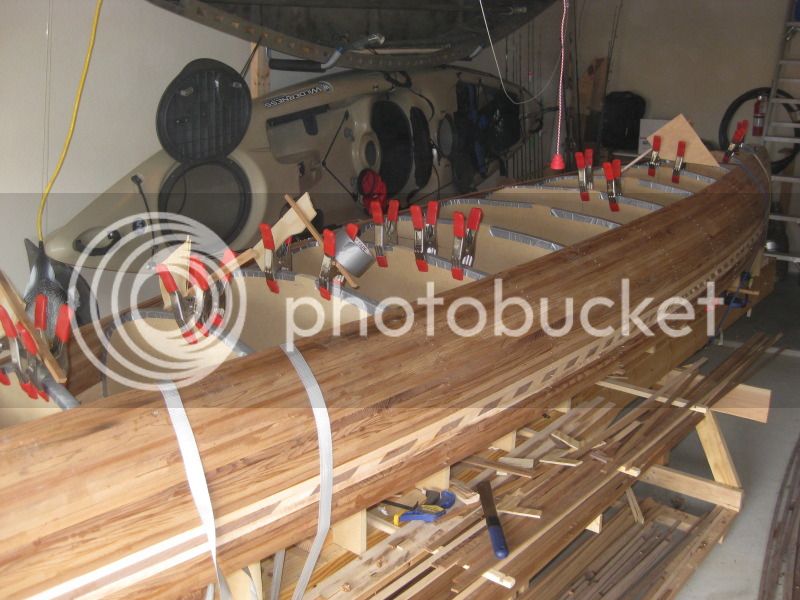

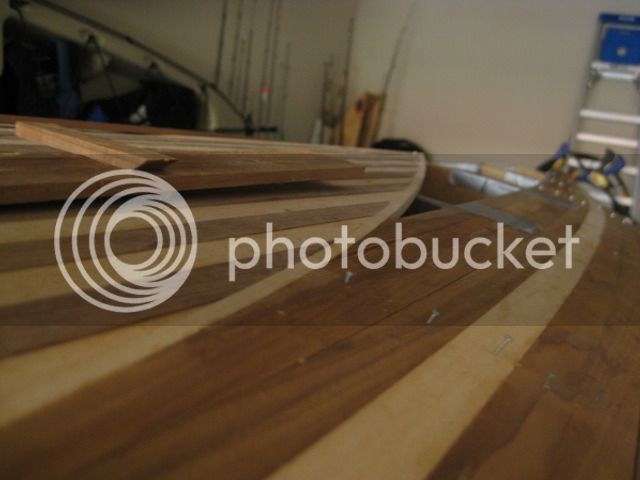

You can see the clamps that show was i was talking about, trying to keep that shear strip nice and straight. I'm making good time now! I'll slow down a little once i start working on the accent stripe, but it'll be fun so i'm not worried about slowing progress. It was a little nerve wracking getting those shear strips on there because i mean, what if they're not perfect?! I just had to take a good look, take a deep breath and say self, they look good, glue.....staple, and move on. Gonna be doing a few strips pretty much each day if i can, so who knows where i'll be at the end of next week!


TX_yakker

Active Member
Sep 23, 2008
26
0
#6
Well, famous last words from my previous post "making good time now". That crow sure tasted bad, 2 years later, haha! Progress has certainly been made since that last post, but its not quite done yet. Life did a nice job of getting in the way for quite a while there but I'm back to working.

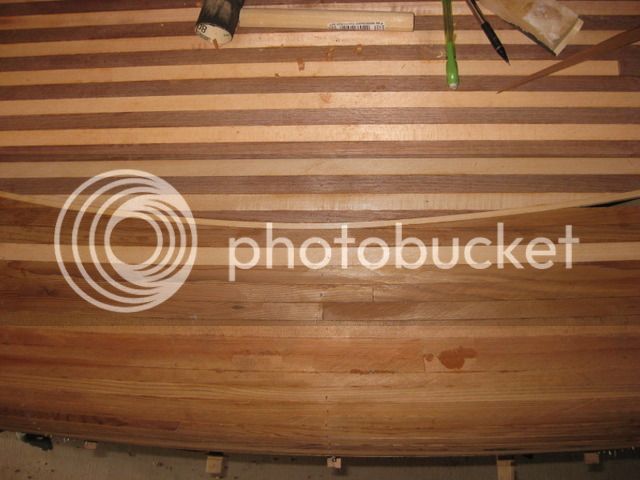

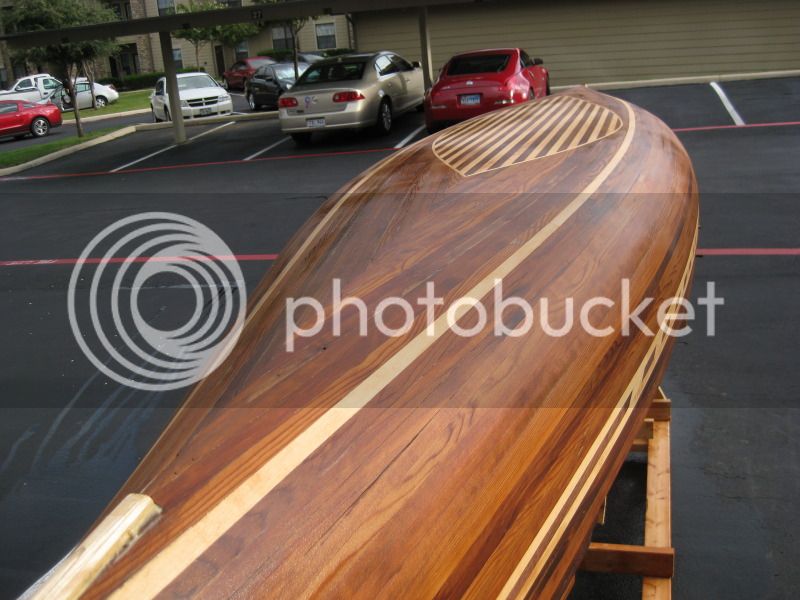

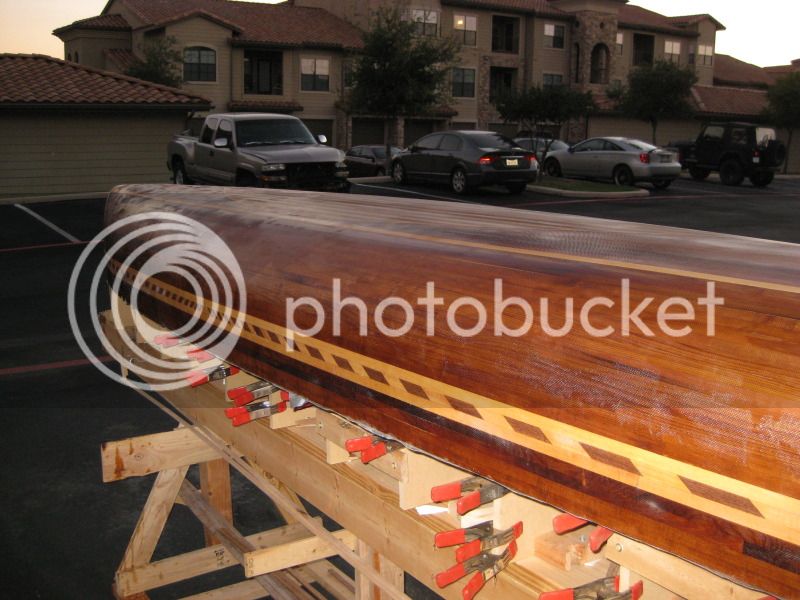

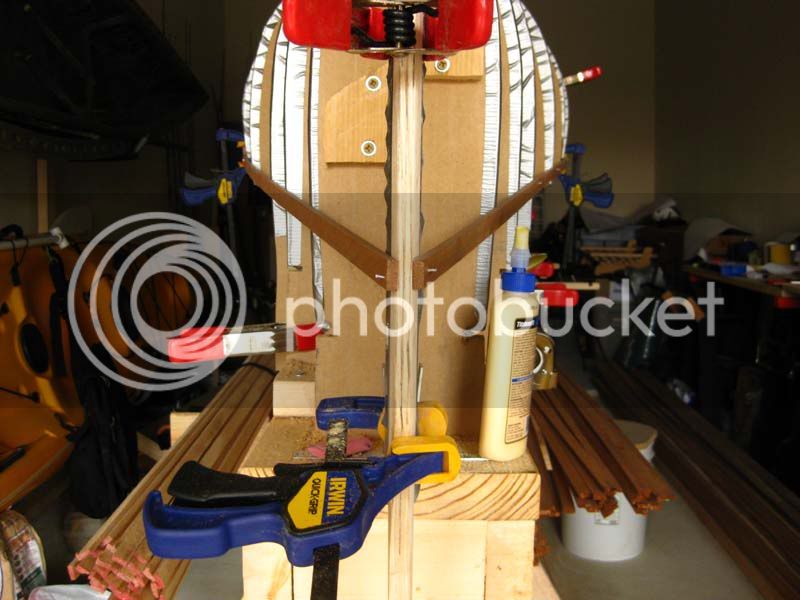

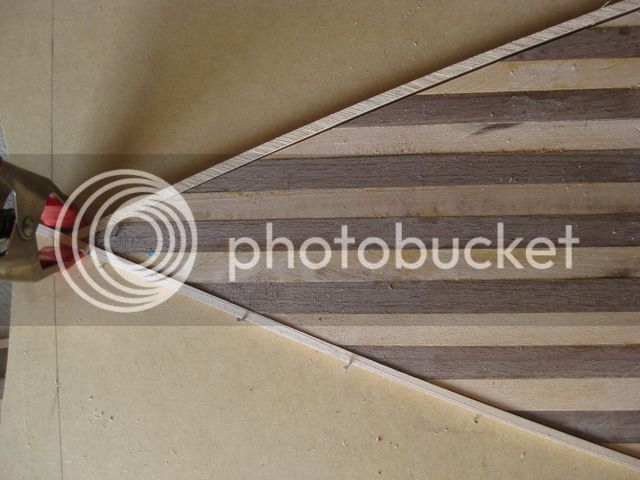

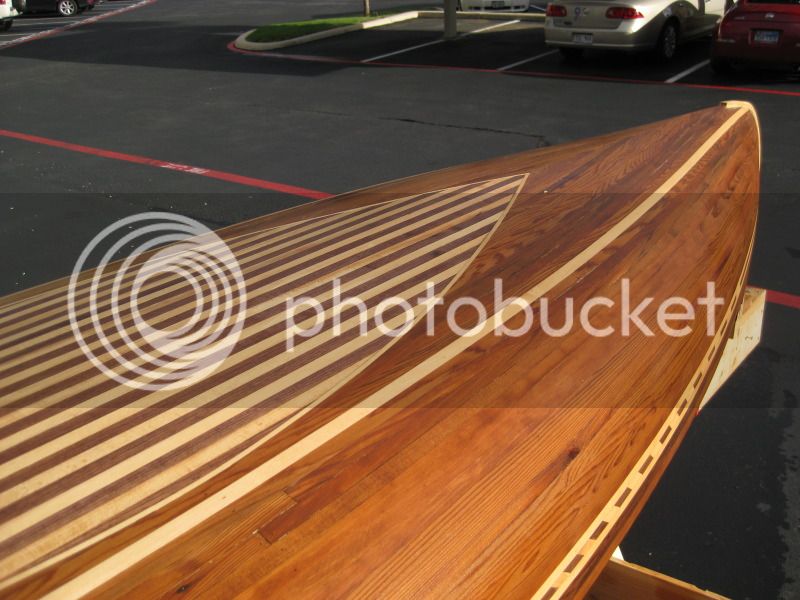

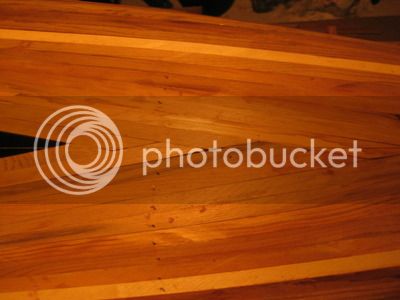

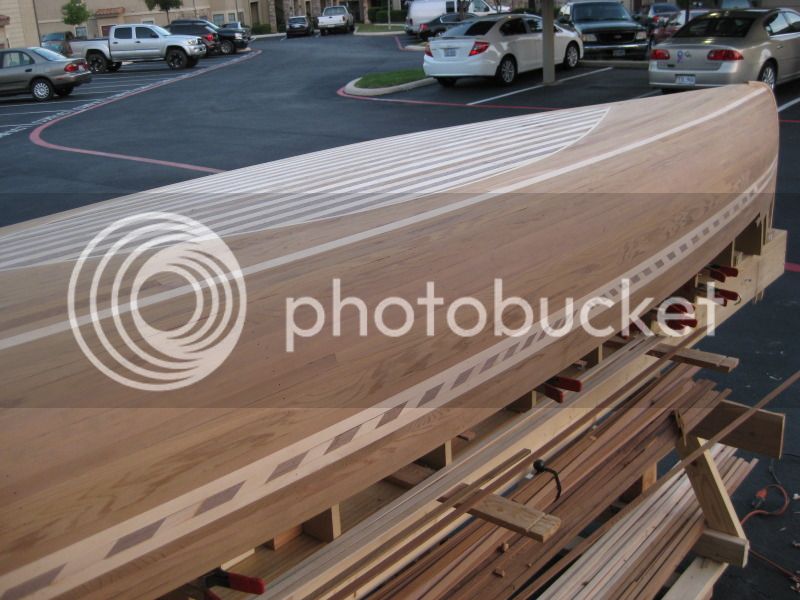

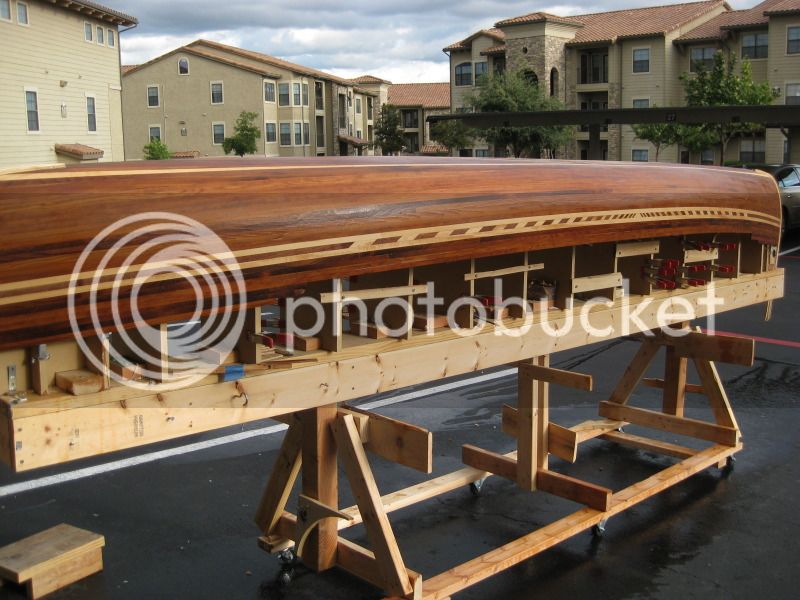

Here's the accent stripe. I made the angled pieces from a combination of basswood and black walnut. I was given plenty of advice about the difference in hardness between these two woods, and to watch out when sanding them. I will say this, it wasnt TERRIBLE working with the two side by side, but I do wish I had ensured that each of the pieces were closer in uniform thickness as I glued them together. Would have helped in the long run in some spots. Also lesson learned, I wanted to use these two woods to get a nice dark/light contrast. Looking at it now, the cedar I have is plenty dark enough and the walnut did stand out nearly as much as I thought it would. Cest la vie....

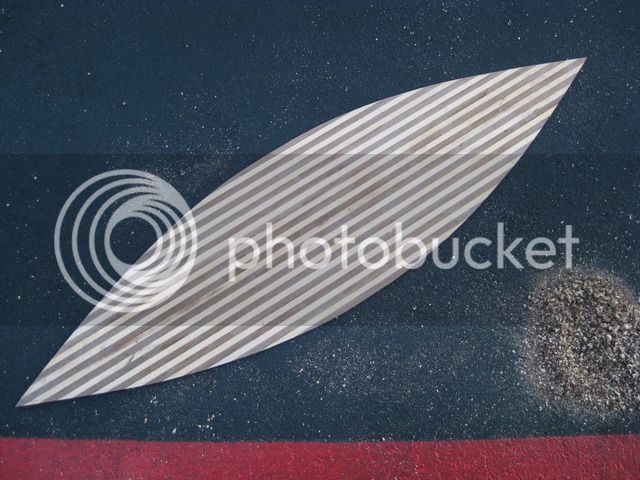

On the bottom there, I had plenty of basswood remaining so I put in one strip on each side, just to mix it up a little. Then it was to the football, since i started that part first. I wanted a light stripe around it, to set it off from the cedar. So, I made some small basswood strips, and test fit them around my rough football to get a nice oval shape. I traced an outline using those strips, then took everything off to cut away the excess



TX_yakker

Active Member
Sep 23, 2008
26
0
#7
Not that i had an oval shaped football, I received some advice to put my light basswood strip around this football BEFORE putting the football on the boat, so I took heed of the advice.





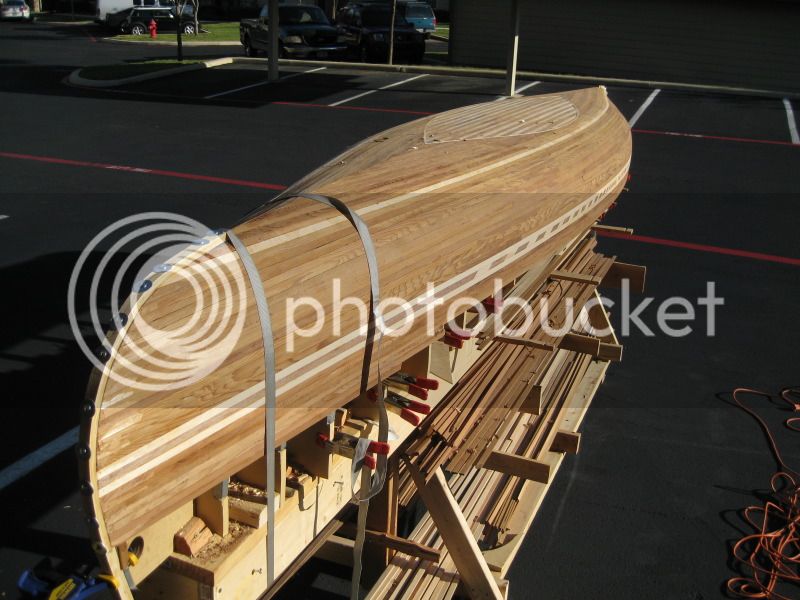

And then it was time to put that bad boy in and get to fitting strips around it! Lots of "guess, cut, check, sand, check, sand, check again, sand a little here, check, GLUE!".

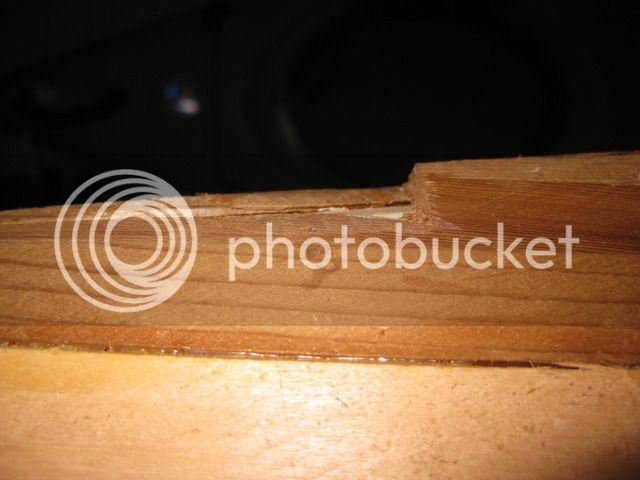

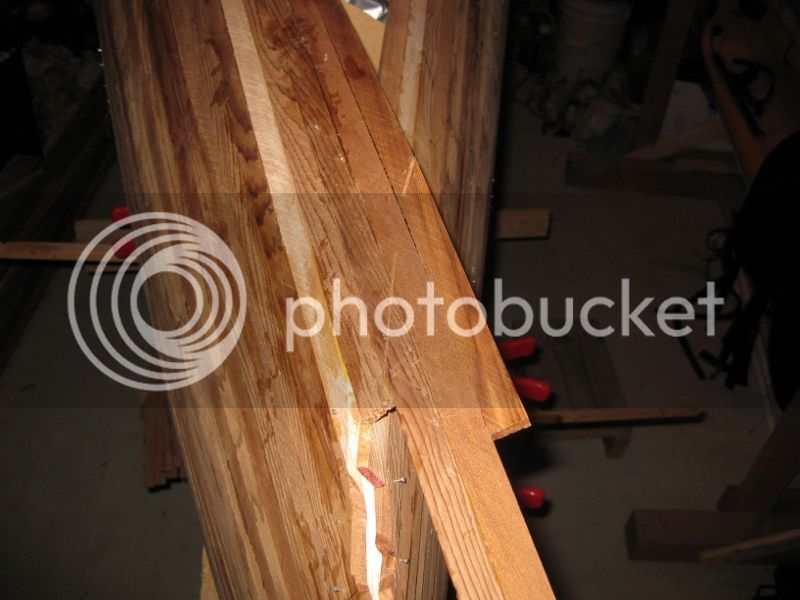

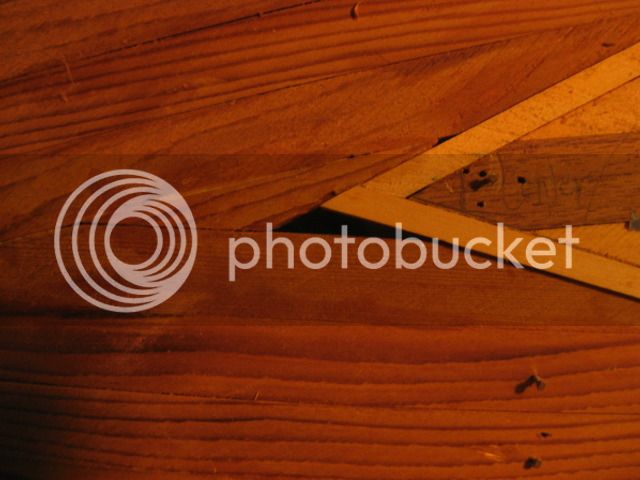

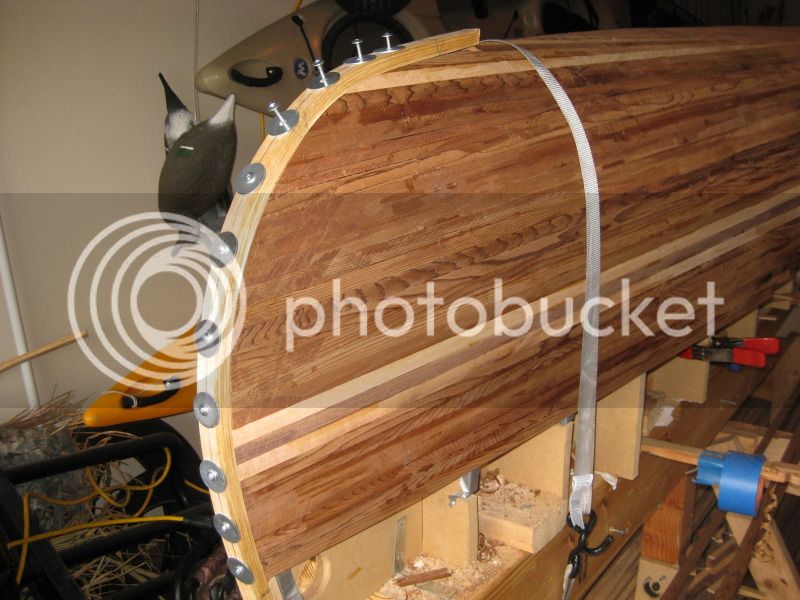

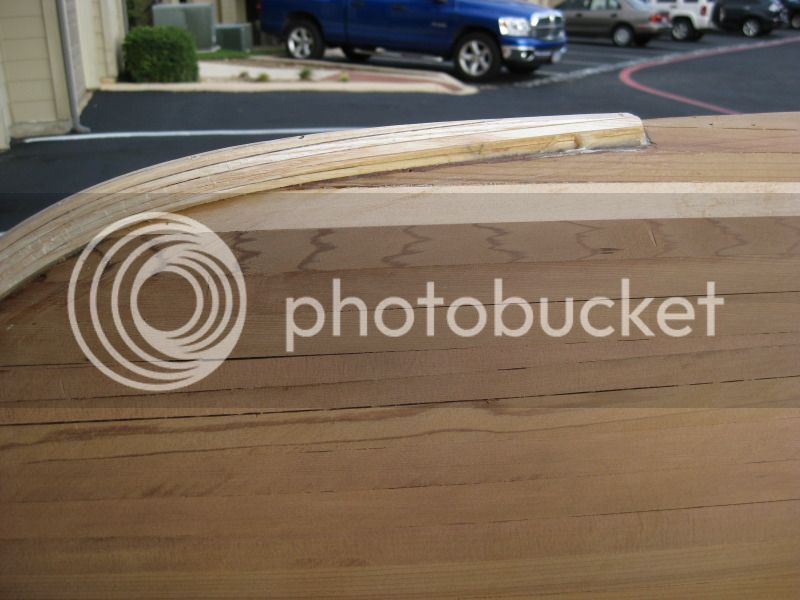

As those pieces were coming together, I was also working on the stem ends as strips began overlapping. This gave me some stress, being my first build. I think I probably messed up with my inner stems a little, and granted in the end everything worked out fine, but during the process I had to do a lot of checking and thinking and consulting to get comfortable enough to proceed.

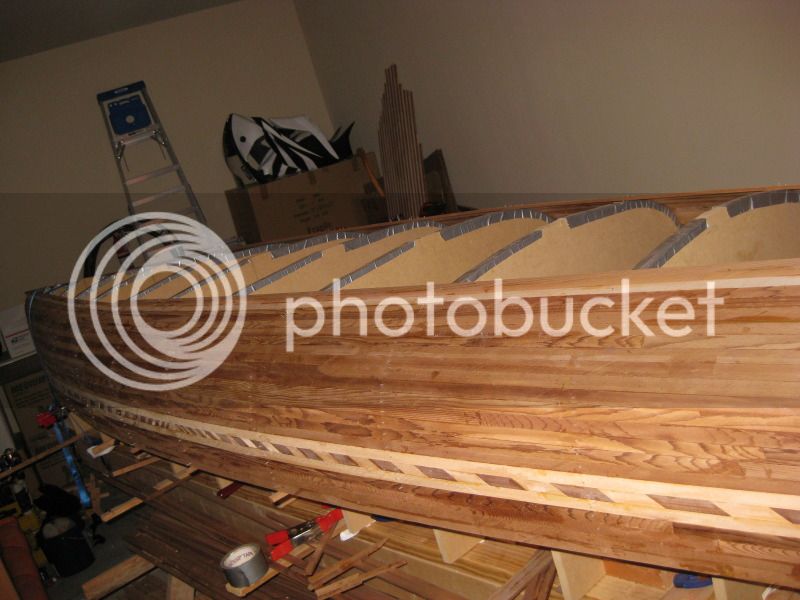

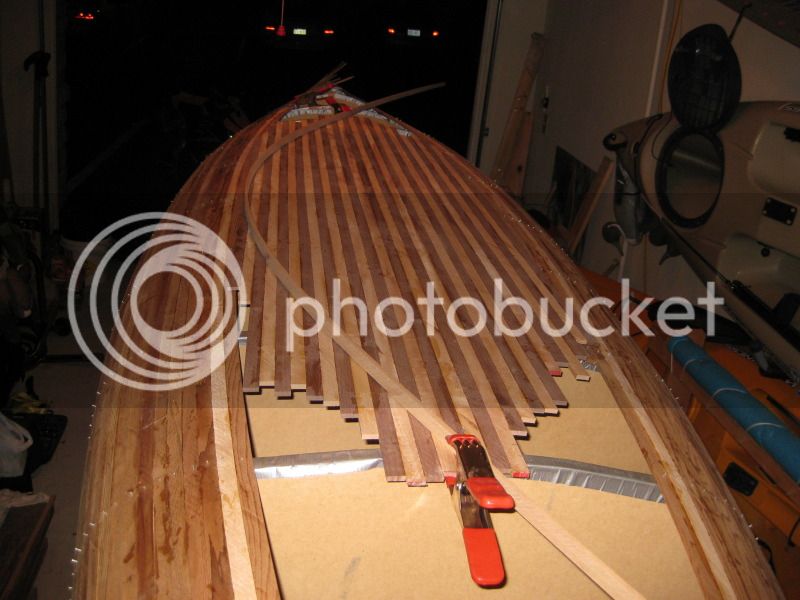

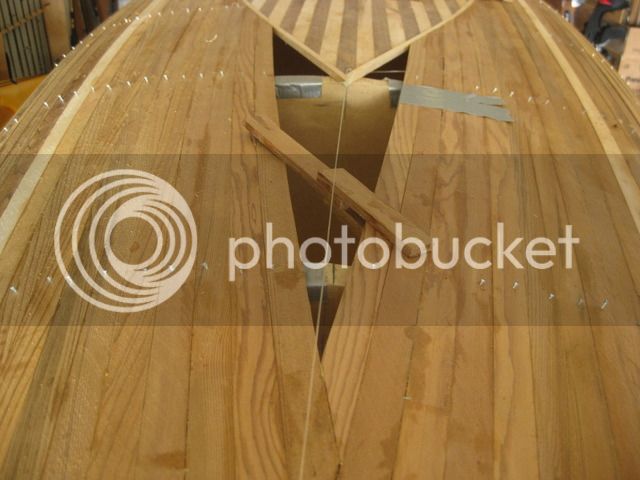

I decided on going the herringbone route instead of having both halves come together along a central seam. No real reason for that decision, just picked it.
